uAT

Security device

The UAT product is a wearable safety device, designed to guarantee proactive assistance and traceability of people who work in “alone” working conditions.

The ultra-compact design favors the application of the device as a security “pendant”..

Details

It is equipped with WiFi, LTE, Bluethooth, VOIP connectivity and designed for the use of active/passive NFC tags for the identification of people on controlled access doors and/or gates.

It integrates a high-density power supply stage and wireless charging base.

It implements a rich set of functions for the complete customization of electronic behavior such as:



-sensitivity to inclination and/or movement

-auto failover LTE/WiFi

– behavior of the SOS button

-Advanced AEC algorithm for hands-free functionality

-position detection on critical event via integrated GNSS

-implements JSON/MQTT interfaces for connection to the service center from which it is possible to monitor the status of the device and send configuration parameters for on-the-fly changes.

-implements support for firmware updates via HTTP(s) with double backup (last revision and current revision) for automatic fallback in the event of a failed update.

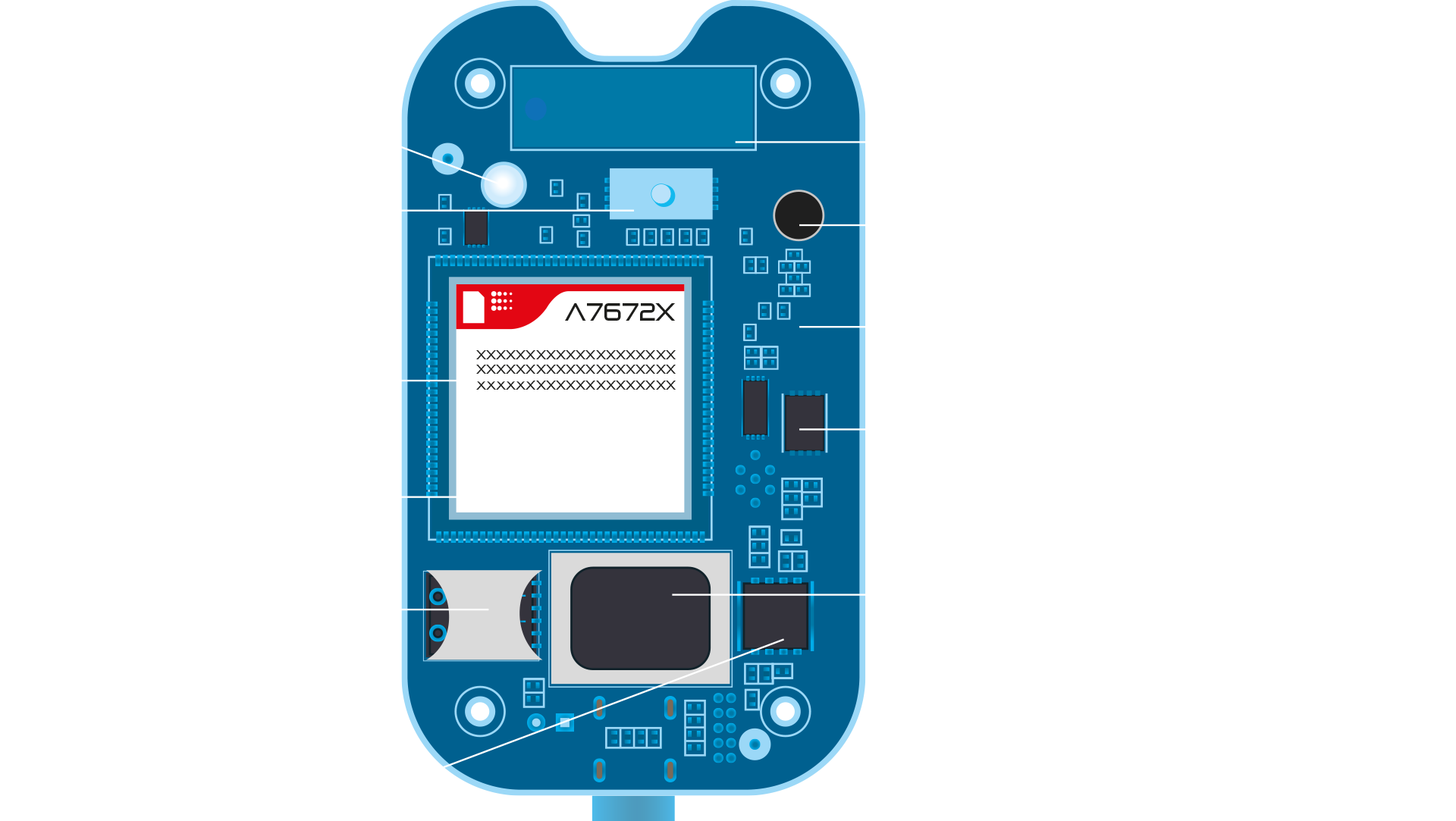

Technical features

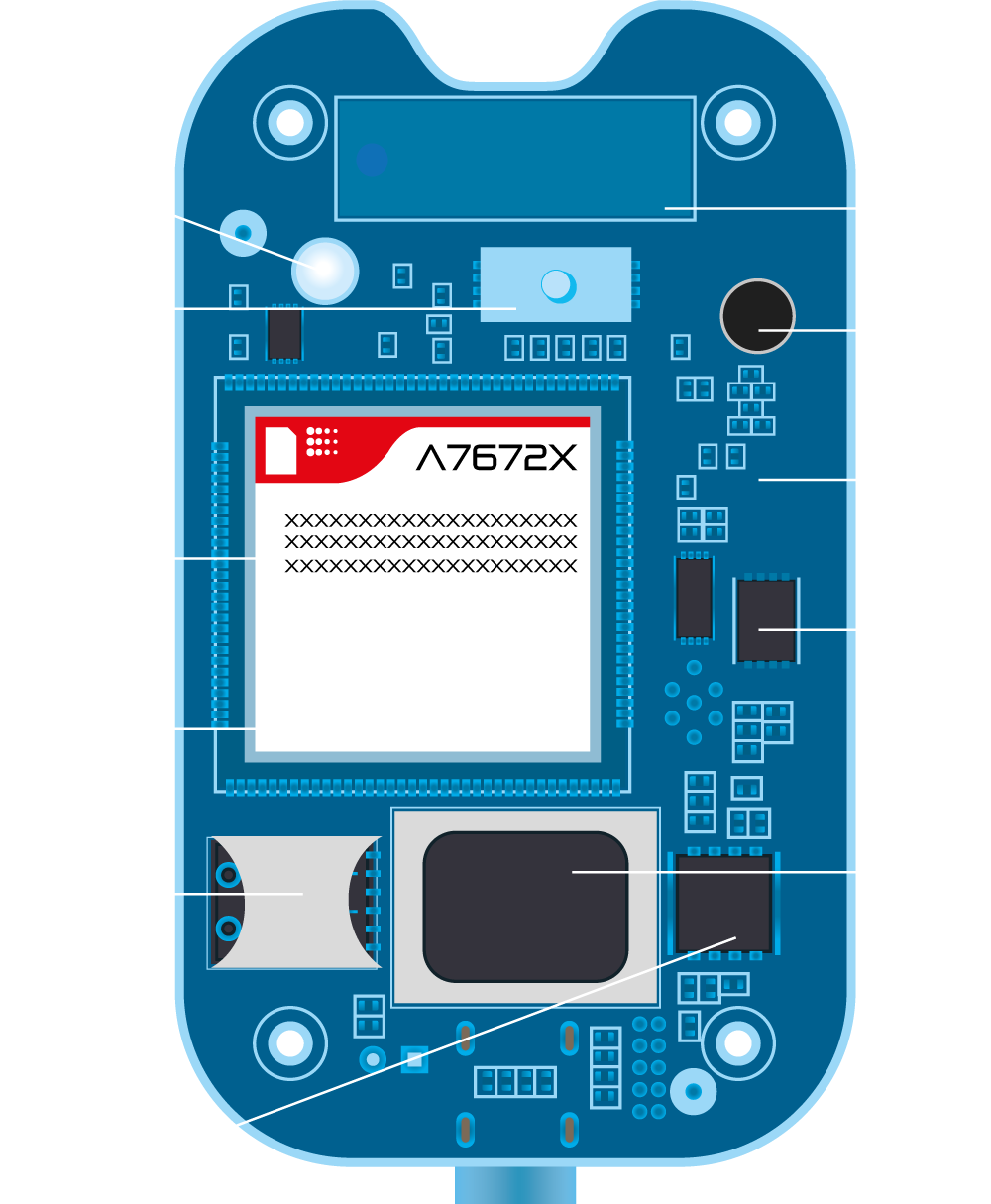

Technical features

  1. RGB LED INDICATOR
  2. CALL/SOS BUTTON
  3. LTE MODEM
  4. GNSS MODULE
  5. uSIM SLOT
  6. VoIP CODEC

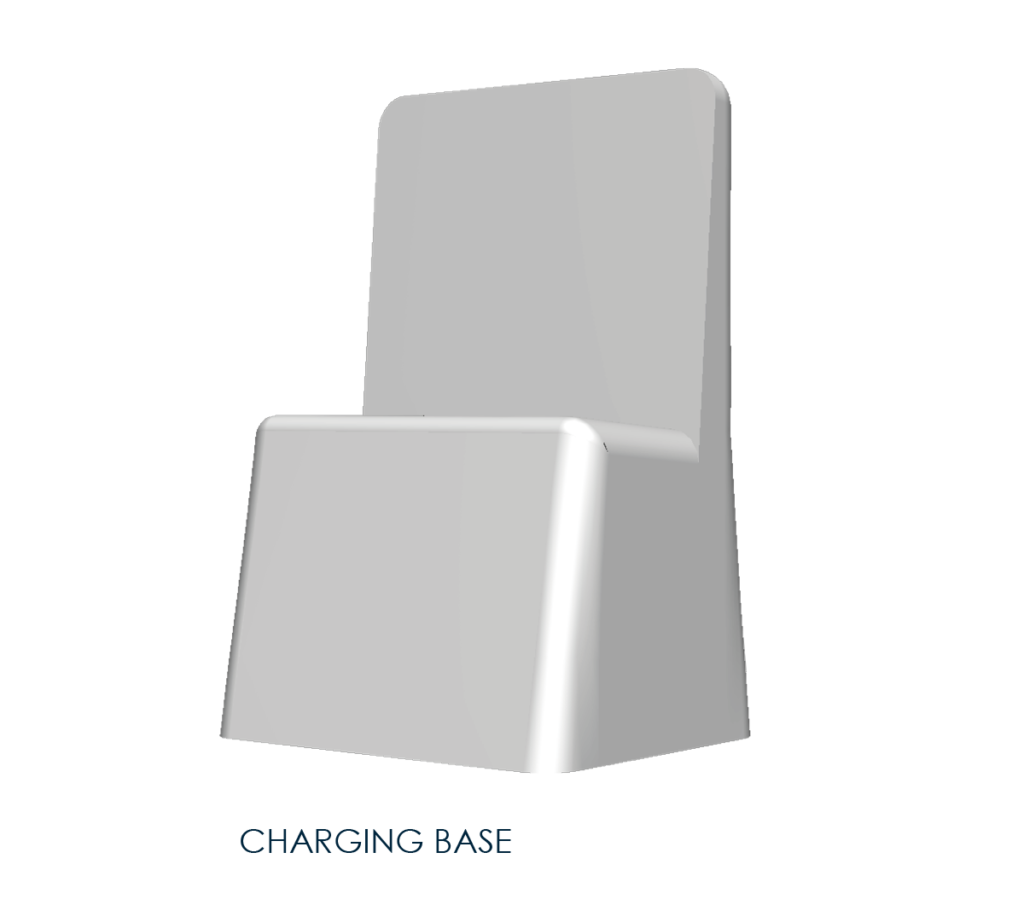

  7. WIRELESS CHARGING BASE
  8. LTE ANTENNA
  9. HIGH SENSITIVITY MICROPHONE
  10. ARM CORTEX Wi-Fi EMBEDDED MCU
  11. GYROSCOPE
  12. HANDS-FREE SPEAKER
  13. USB TYPE-C. PROGRAMMING AND CHARGING

Mechanical features
