Integrated system

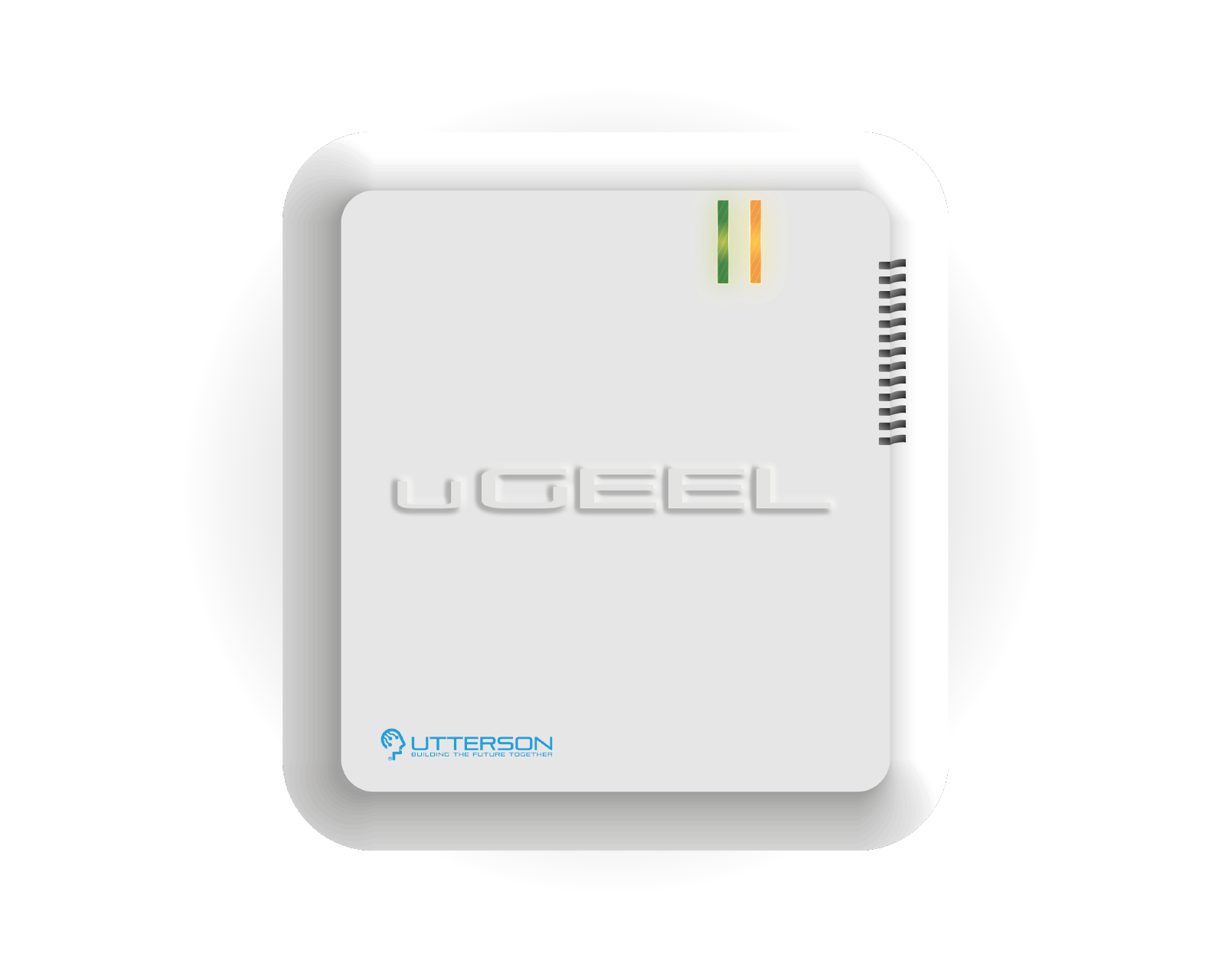

U-GEEL is an intelligent and multifunctional device that integrates intrusion detection and access control functions.

U-GEEL is designed to ensure high scalability of the solution, ease of installation and maintenance over time.

ugeel5
DETAILS
TECHNICAL FEATURES
USES AND FUNCTIONS
INTERFACE AND CONTROL
u-geel_0003_3misure

Details

Grazie al bus di espansione integrato, permette l’installazione di ulteriori 32 moduli tra concentratori, tastiere touch e lettori RFID.

Il sistema di alimentazione con backup a batteria integrato garantisce uptime e continuità del servizio e di tutte le periferiche direttamente connesse.

Dispone di una doppia connettività dati su interfacce Ethernet ed LTE 4G+ programmabili in fallback in caso di disservizio di rete.

Technical features

INTRUSION PROTECTION COMPONENTS:
16 sensor ports with programmable balancing;
1 siren port with programmable logic;
Anti-tamper;
Anti-tear tamper;
32 configurable partial zones
Unlimited number of users
Double authentication factor (PIN or PIN + Badge)
Alarm and event memory depth up to 16384 records

ACCESS CONTROL:
1 RS485/422 bus port for installing up to 32 control devices such as touch keyboards and RFID readers
8 SPDT actuator ports with programmable logic clean contacts

ALL OTHER ELEMENTS:
Highly reliable network connectivity (eth + 4G+)
CEI-ABI communication protocol from management platform to external connectors
USB virtual comm programming port
12VDC 9Ah ​​backup battery
ABS plastic case

Uses and functions

U GEEL supports a wide variety of commercial and third-party sensors which simplifies the process of modernizing pre-existing systems when the replacement of accessory devices (sensors, magnetic contacts, sirens and wiring) is not required and/or necessary.

The “direct actuator” function allows you to configure the behavior of any output in the system based on the status of a single sensor port and independently of the general status of the control unit.

No limits in defining areas and number of sensors per area, configurable in OR or AND logic.

The dual network connectivity allows automatic failover of the communication channel to the management platform in the event of absence or blackout of the LAN network.

All configuration and operating parameters are stored by the control unit on internal flash which allows the system to function correctly even if completely isolated.

The “double authentication” option on keyboard-type accessories allows you to increase the level of system security when it is necessary to implement 2FA type staff authentication policies.

interfaccia

Interface
and control

U GEEL has a programming software and system diagnostics that can be used during the installation and commissioning of the system.



All the configuration and usage parameters of the system are also accessible from the management platform, which guarantees ease of deployment on a large scale thanks to the “deploy from template” function and full control of all connected control units (management, monitoring and backup/restore)
